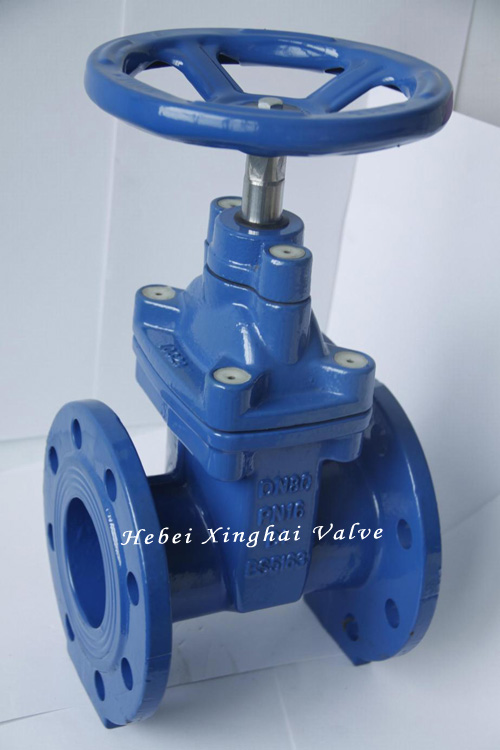

NRS STEM BS5163 RESILIENT SEAT GATE VALVE

Design and manufacture conform to BS5150 & BS5163 PN16
Face to face dimensions conform to BS EN558-1 PN16
Flange dimensions conform to EN1092-2
Testing conform to BS6755 / BS EN12266-1

Epoxy coating or Special coating for potable water

Operated by Handwheel operated (gear box be optional)



                                  DIN3202 F4 gate valve



NO PART NAME METERIAL
1 BODY DUCTILE IRON
2 WEDGE  DUCTILE IRON+EPDM
3 BONNET DUCTILE IRON
4 STEM STAINLESS STEEL
5 STEM NUT BRASS
6 HAND WHEEL CAST IRON
7 O RING EPDM/BUNA
8 BOLT STEEL





DN L H W O C g f T n-ød
50 178 210 160 165 125 99 3 19 4-ø18
65 190 237 200 185 145 118 3 19 4-ø18
80 203 274 200 200 160 132 3 19 8-ø18
100 229 300 200 220 180 156 3 19 8-ø18
125 254 364 250 250 210 184 3 19 8-ø18
150 267 404 250 285 240 211 3 19 8-ø22
200 292 497 320 340 295 165 3 20 12-ø22
250 330 590 370 400 355 319 3 22 12-ø26
300 356 667 370 455 410 370 4 24.5 12-ø26
350 381 882 450 520 470 429 4 26.5 16-ø26
400 406 956 450 580 525 480 4 28 16-ø30
450 432 1027 640 640 585 548 4 30 20-ø30
500 457 1106 640 715 650 609 4 31.5 20-ø33
600 508 1258 640 840 770 720 5 36 20-ø33
